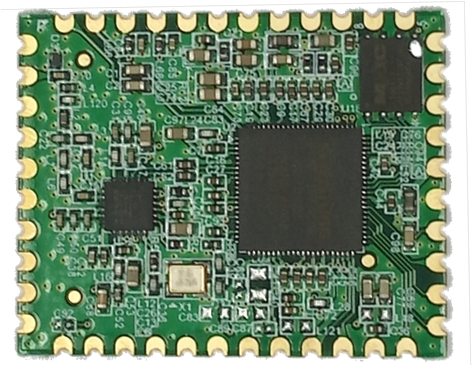

Basics of T4E
● ETSI EN 300 401(V2.1.1) compliant receiver
● DAB/DAB+ sensitivity to -99dBm (typical)
● FM sensitivity to -106dBm (typical)
● DAB Color Slide show support (Data service option)
● DMB video service support (Data service option)
● TPEG support for GPS applications (Data service option)
● Decodes audio services up to 384kbps without external RAM
● FM with RDS/RBDS decoder
● Combined antenna input for FM / Band3
● Integrated stereo audio DAC
● Stereo Line-in
● Digital audio output – I2S and SPDIF
● Digital audio Input – I2S
● UART and I2C Serial control interface
● ADC Keypad
● Real time clock accurate 50ppm
● Configurable general purpose I/O
● Ultra low-power
● RoHS compliant

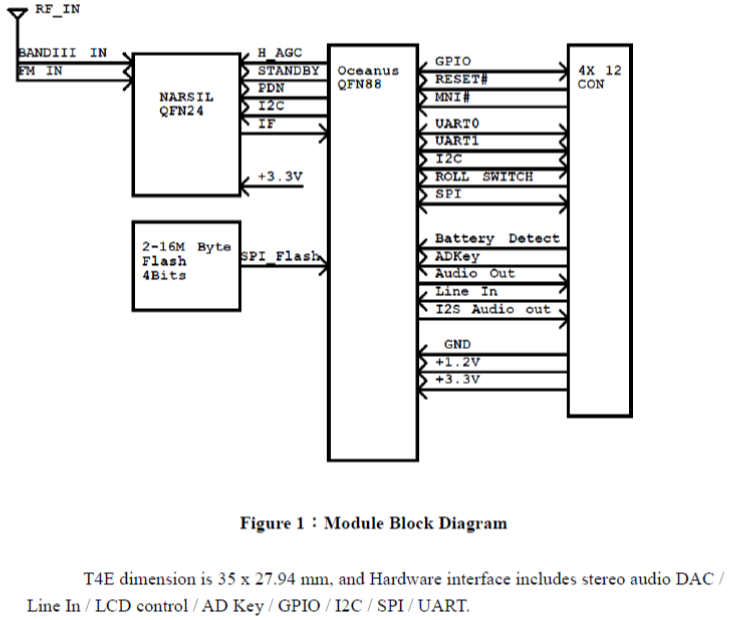

Module Block Diagram

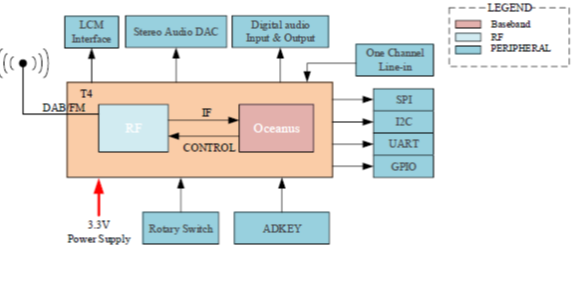

Master mode

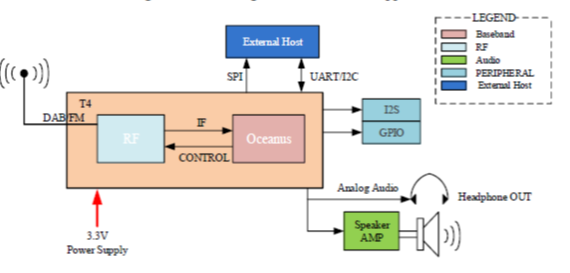

Slave mode
Grade |
Part Number |
Temp (C) |
Band |
Note |
Commercial |
T4E-6620CSB |
0 to 70 |
Band III, FM |
|
Commercial |
T4E-6D60CSB |
0 to 70 |
Band III, FM |
with slide show & Support TFT LCD |
Commercial |
T4E-6B60CSB |
0 to 70 |
Band III, FM |
with slide show at slave mode |
Industry |
T4E-6620VSB |
-40 to 85 |
Band III, FM |
|
Industry |
T4E-6D60VSB |
-40 to 85 |
Band III, FM |
with slide show & Support TFT LCD |
Industry |
T4E-6B60VSB |
-40 to 85 |
Band III, FM |
with slide show at slave mode |
